16.2: Converting Policy & Miniscript

There are currently limited command-line functions available to convert Policy into Miniscript. (BDK-CLI can do so, but it's a whole set competitor to bitcoin-cli, so we're going to approach it separately in §16.4.) However, a convertor at Peter Wuille's website is easy to use and as official as you get in the Bitcoin world. In addition, some wallets allow the direct use of scripting policy and some APIs exist for conversion.

Compile Policy on the Web

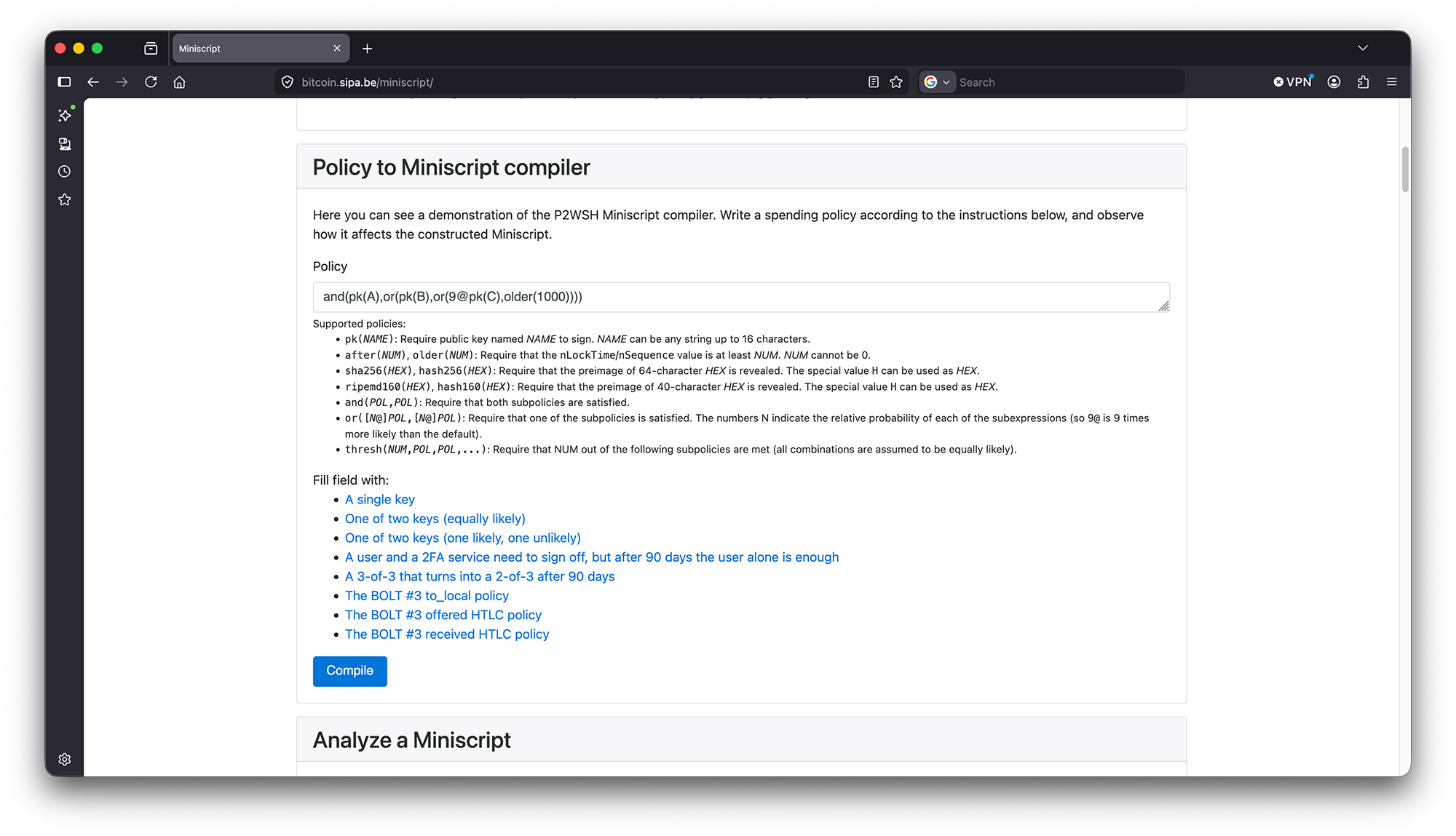

The bitcoin.sipa.be miniscript site contains the most accessible "Policy to Miniscript compiler":

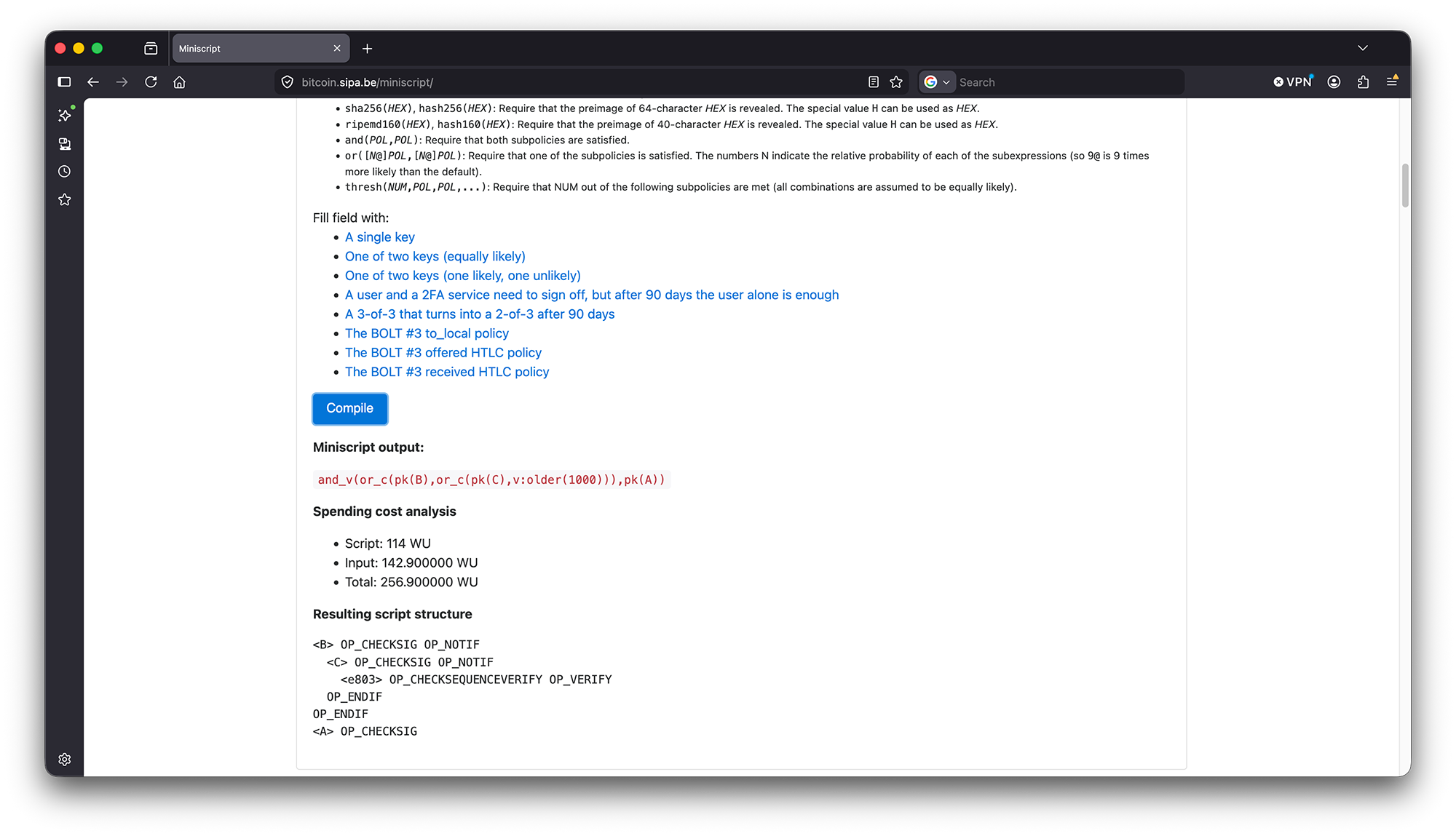

Enter a policy and click "Compile" and it will show the output, including the Miniscript conversion, analysis of transaction costs, and even the Bitcoin Script that the Miniscript runs as.

⚠️ Duplicate Names Not Allowed. The sipa.be website doesn't like it when you use the same name for multiple variables (e.g., "buyer" or "escrow"). If you receive an error, change the names of any duplicated keys.

Encode Miniscript on the Web

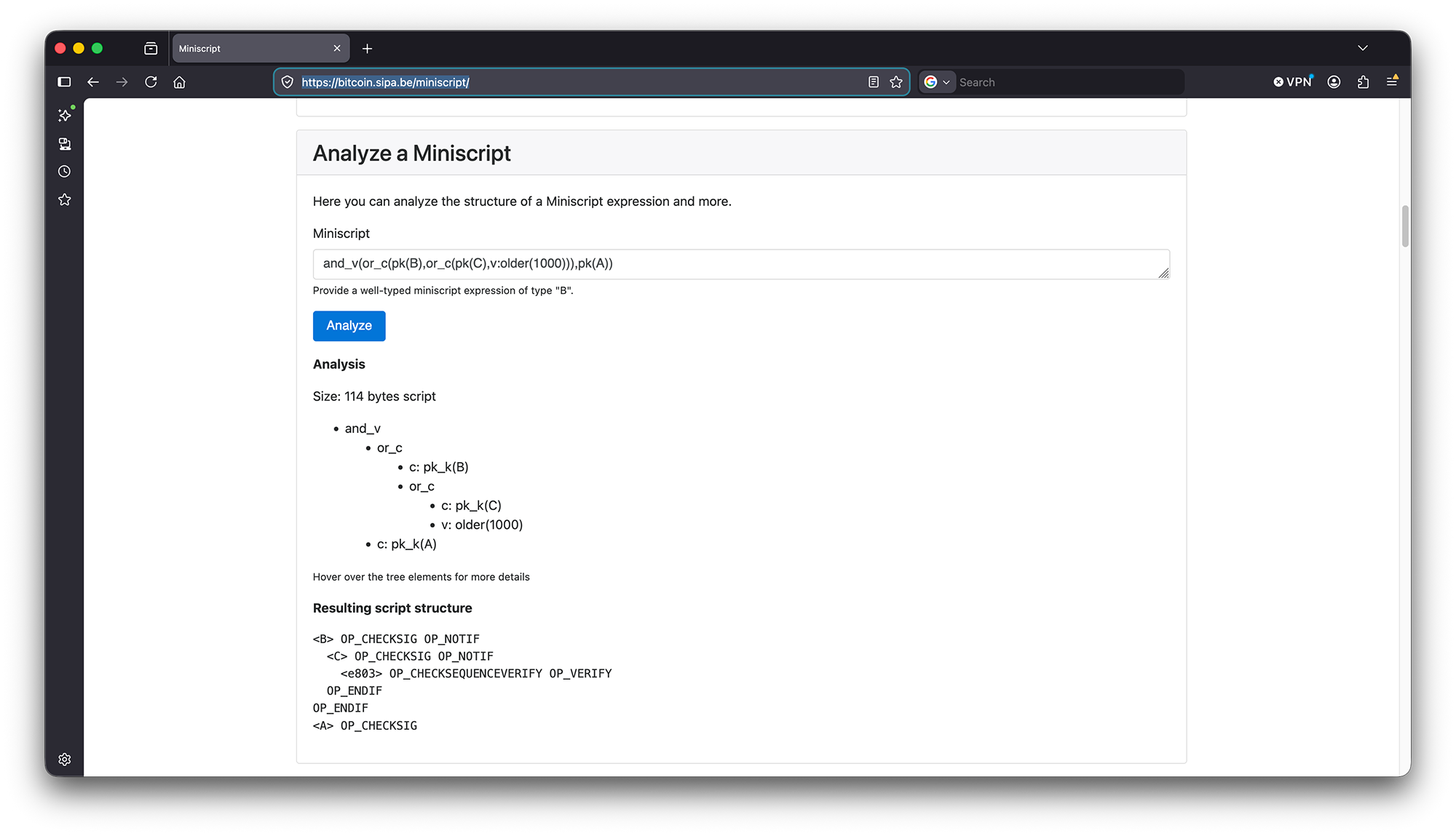

The "Analyze a Miniscript" section of the website similarly allows you to encode Miniscript into Bitcoin Script, which you could then use to form an address as described in the previous chapters' discussion of P2SH and P2WSH.

Examine Policy to Bitcoin Script Conversions

Try using the sipa.be website to examine a few of the Bitcoin Scripts from chapter 15, especially the ones we already converted in the previous section.

For example, here's the policy for our president or two vice-presidents script:

or(pk(president),thresh(2,pk(vp1),pk(vp2),pk(vp3)))

In §15.2 we wrote it as follows:

OP_DEPTH
1
OP_EQUAL
OP_IF
  <pubKeyPres>
  OP_CHECKSIGNATURE
ELSE
  2
  <pubKeyVPA>
  <pubKeyVPB>
  <pubKeyVPC>
  3
  OP_CHECKMULTISIG
OP_ENDIF

The compiler instead produces:

<pubKeyPres>
OP_CHECKSIG
OP_IFDUP
OP_NOTIF
  2
  <pubKeyVPA>
  <pubKeyVPB>
  <pubKeyVPC>
  3
  OP_CHECKMULTISIG
OP_ENDIF

This does a great job of showing two of the benefits of Miniscript. First, it demonstrates how different Bitcoin Scripts can produce the same results. The abstraction of Miniscript cuts out some of that variation. Second, it demonstrates how Miniscript is built to produce more compact results: it produces code using 10 elements vs 14 in our original. That likely means that it's fewer bytes and so slightly cheaper to put in a block.

(Is it more or less readable? That's a different question, but with Miniscript and especially Policy there, readability becomes less of an issue.)

Convert Policy & Miniscript with APIs

Conversion software is available through various APIs.

Summary: Converting Policy & Miniscript

Miniscript and Policy are great new tools for creating Bitcoin Scripts, but at the moment you can't convert between the various forms on the command line unless you install bdk-cli, a command-line program that deserves a course of its own. Nonetheless, the bitcoin.sipa.be miniscript site offers great tools that will allow you to do the conversion, and then return to the command line with whatever scripting version you prefer.

What's Next?

Continue "Using Miniscript" with [§16.3: Using Miniscript with Descriptors] (16_3_Using_Miniscript_with_Descriptors.md).
